Executive Summary
Nanocoating technology has emerged as a transformative solution in enhancing the performance, durability, and efficiency of mechanical components. It is an ultra-thin multifunctional layers consists of nanostructured materials. By manipulating materials at the nanoscale, nanocoatings offer superior properties such as wear resistance, corrosion protection, reduced friction, and self-cleaning capabilities. This whitepaper explores the science behind nanocoating, its application in mechanical engineering, benefits, challenges, case studies, and future prospects, providing an in-depth analysis of its potential impact on industrial applications.
1. Introduction
The rapid advancement of nanotechnology has opened new avenues for material science and engineering. Mechanical components, which often operate under harsh conditions such as high loads, temperature fluctuations, and corrosive environments, are prone to wear, corrosion, and efficiency losses. Traditional surface treatments like plating, painting, and thermal spraying provide limited protection.
In contrast, nanotechnology offers a great solution; by designing ultra-thin multifunctional coating at the microscopic level. Nanocoatings introduce enhanced functionalities by modifying surface characteristics at the molecular or atomic level. This means machines will be last longer, work-better, less maintenance and cost effective. This paper provides a detailed overview of nanocoating applications in mechanical systems and their implications across industries.
2. Purposed Solution: Technology Overview
2.1 The Critical Need for Enhanced Tribological Performance

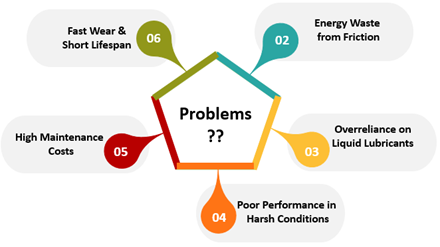

As machines are getting upgrade by time the workload is also increasing, we can say that modern/present machine are working harder than ever but traditional materials and lubricants are struggling to keep up. This causes:
2.2 Nano-Coating: The Concept
Nanocoating refers to the application of a nanoscale thin film (1–100 nm) on a substrate surface to impart desired physical, chemical, or functional properties. These coatings can be designed to alter hardness, chemical resistance, or tribological behavior which are infeasible with traditional material approaches or conventional coating techniques.

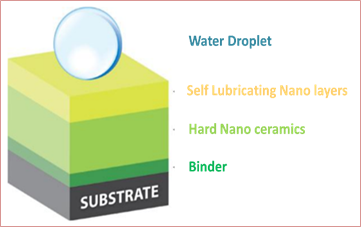

2.3 Core Components and Principles of Nano-Coatings:
- Substrate (Base Material): The underlying mechanical component (e.g., steel, titanium alloys, ceramics, polymers) onto which the nano-coating is deposited. Strong adhesion between the coating and the substrate essential for maintaining structural integrity and optimal performance.
- Coating Material: Consists of various nanoparticles, nanostructured films, or nanocomposites. Common categories include:
- Hard Nanoceramics: Such as Titanium Nitride (TiN), Chromium Nitride (CrN), Aluminum Titanium Nitride (AlTiN), or Silicon Nitride (Si3N4), known for their exceptional hardness and wear resistance.
- Self-Lubricating Nanolayers: Materials like Molybdenum Disulfide (MoS2), Tungsten Disulfide (WS2), Graphitic Carbon, or hexagonal Boron Nitride (h-BN), which inherently provides low friction.
- Multilayer/Nanocomposite Structures: Combinations of hard and soft layers, or nanometer-sized hard phases embedded within a softer matrix, designed to achieve both high wear resistance and low friction
- Deposition Methods: Advanced techniques are employed for precise application, including Physical Vapor Deposition (PVD), Chemical Vapor Deposition (CVD), Atomic Layer Deposition (ALD), and various plasma-based coating methods.
Soruce: https://nanoslic.com/about-nanocoatings/
2.3.1 Additional Method: Nano-Additives in Lubricants and Hybrid Systems
While distinct from direct coatings, the integration of nanoparticles into traditional liquid lubricants (nano-lubricants) offers a complementary solution. Nanoparticles (e.g., fullerene-like WS2, graphene, or metallic nanoparticles) suspended in oil or grease can reduce friction and wear by forming protective films on sliding surfaces, acting as "nanobearings" that roll between contact points, or enhancing the thermal conductivity of the lubricant. Hybrid approaches combine a permanent nano-coating with a nano-enhanced lubricant to achieve optimal tribological (friction and wear) performance.
3. BENEFITS

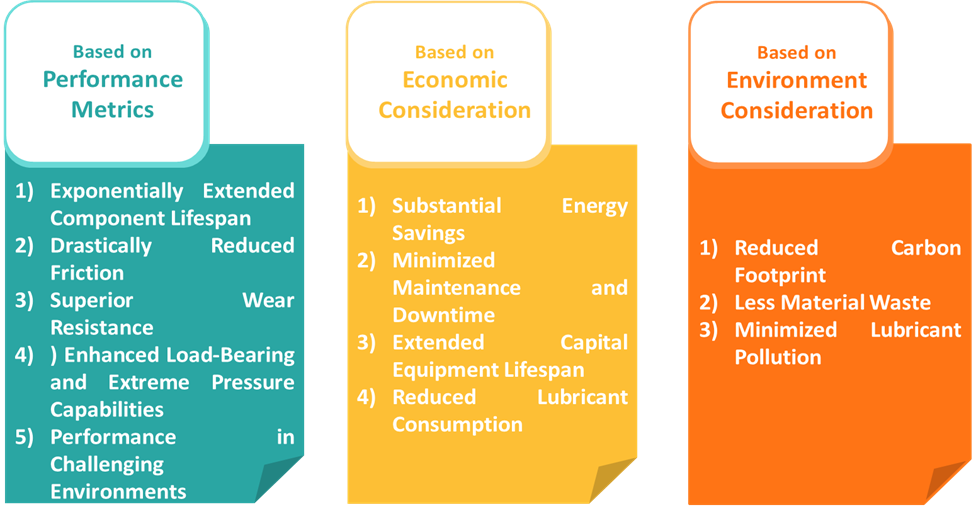

Here, it will highlights the advantages and positive results achieved by incorporating nano-coatings for wear resistance and lubrication, evaluated across performance, economic, and environmental dimensions.

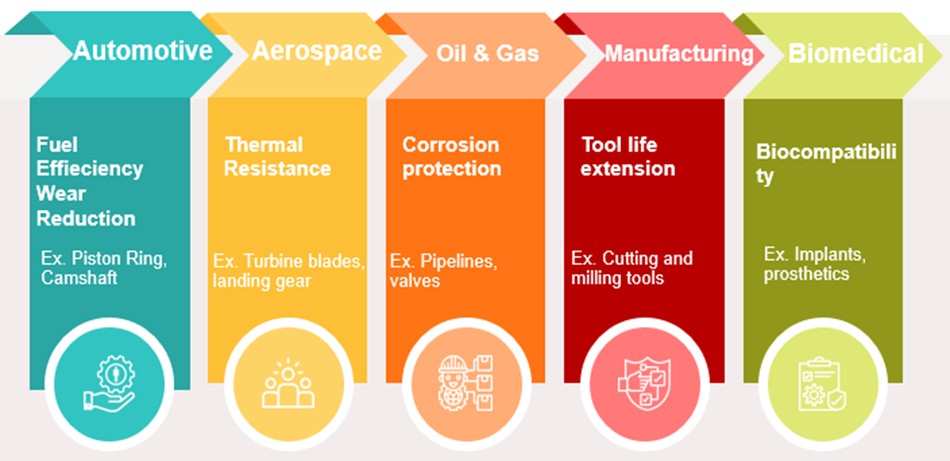

3.1 Benefits/Applications regarding the Key Industries
4. COMPETITIVE ANALYSIS/MARKET OUTLOOK
The current market landscape for nano-coatings specifically tailored for wear resistance and lubrication in mechanical components, identifying key application sectors, dominant regional trends, and leading market players.

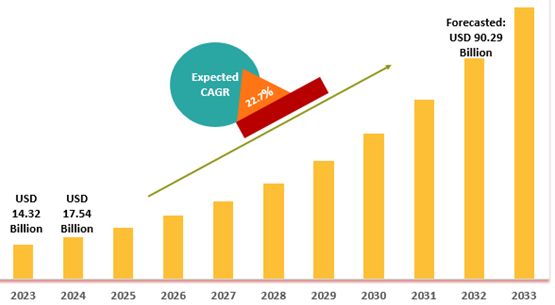

4.1 Market Size & Forecast
The global nanocoatings market size was USD 14.32 billion in 2023 and is projected to grow from USD 17.54 billion in 2024 to USD 90.29 billion by 2032, exhibiting a CAGR of 22.7% during the forecast period. North America dominated the nanocoatings market with a market share of 41.62% in 2023.
The increasing demand from the construction sector is one of the key factors driving market growth. Implementation of the product to support sustainability and conserve energy is significantly boosting the market growth. Additionally, the increasing adoption of abrasion-resistant products from the automotive sector shall fuel the market growth.
2023 Market Size: USD 14.32 billion
2024 Market Size: USD 17.54 billion
2032 Forecast Market Size: USD 90.29 billion
CAGR: 22.7% from 2024–2032.
North America dominated the nanocoatings market with a 41.62% share in 2023, driven by strong government subsidies, infrastructure investment, advanced R&D in nanotechnology, and rising adoption of green building technologies.
By type, self-cleaning nanocoatings hold the largest market share, supported by demand for low-maintenance and protective coatings in construction and healthcare sectors.

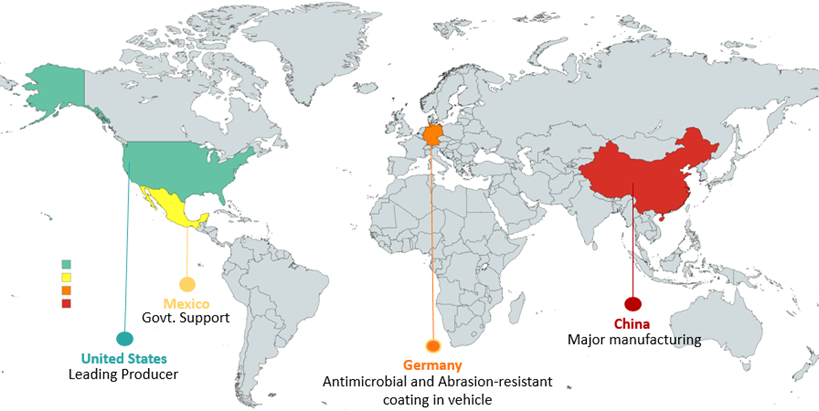

4.2 Key Country Highlights
United States: Leading producer of nanocoatings and nanomaterials, driven by aerospace, electronics industries and green building initiatives like the USGBC’s LEED program.
China:Major manufacturing hub benefiting from low labor costs and growing industrial and construction activities fueling nanocoatings demand. The Asia-Pacific Nano Coatings Market is expected to grow at a CAGR of 4.66% from 2022 to 2030. Morever, China Nano Coatings market held the largest market share, and the India Nano Coatings market was the fastest growing market in the Asia-Pacific region.
Germany: Established automotive industry increasing demand for antimicrobial and abrasion-resistant coatings in passenger and luxury vehicles. By this, Germany Nano Coatings market held the largest market share, and the UK Nano Coatings market was the fastest growing market in the European region.
Mexico: Government infrastructure projects and social-economic development initiatives support steady growth in the Latin American market.
5. Future Aspect
Future research is focusing on multifunctional nanocoatings that combine properties such as self-healing, smart sensing, and adaptive responses to environmental stimuli. Key directions include:
6. Challenges
Nano-coating is widely used in many sectors; still, it has some key challenges. This section summarizes major issues and points to future research directions.
6.1 Manufacturing Scalability and Cost Reduction
A primary challenge is scaling up the deposition of high-quality nano-coatings from laboratory prototypes to industrial-scale production. This involves achieving consistent coating thickness, uniformity, and desired properties over large surface areas and complex geometries, while simultaneously reducing production costs to make them competitive with conventional solutions. The transition requires developing more efficient and cost-effective synthesis and deposition techniques.
6.2 Performance Optimization and Long-Term Durability
Continued research is needed to further optimize the tribological properties of nano-coatings for even more demanding applications and ultra-long service lifetimes. This includes developing novel materials with enhanced self-healing capabilities, adaptive tribological responses to changing operating environments (e.g., changes in temperature or load), and ensuring their long-term stability and adhesion under continuous high stress, fatigue, and chemical exposure
6.3 Standardization and Quality Control
The unique and often complex characteristics of nanostructured coatings necessitate the development of robust, internationally recognized standardized testing methodologies and stringent quality control protocols. This is crucial for ensuring the reliability, reproducibility, and consistent performance of nano-coated products across various industries and for building industry trust.
6.4 Health and Environmental Safety Considerations
As nano-coatings become more pervasive, comprehensive research is essential to fully understand any spotential health and environmental impacts of nanoparticles throughout their entire lifecycle. This includes assessing risks during manufacturing, application, in-service wear, and eventual disposal. Developing clear, evidence-based safety guidelines and regulatory frameworks is paramount for public acceptance and environmental protection.
7. IP Activity in Nano coating
As part of our analysis of patent activity in transparent solar panel integrated in building, an IP study was conducted to identify patents related to this technology and a total of 2760 applications were selected for final analysis.
7.1 Relevant keywords, synonyms and classes used for search
- Nano, Minute, Very small, tiny, minuscule, microscopic, minute
- Coating, Laminated, Polished, Layer, Covering
- Relevant patent classification includes B82Y30/00, F16*
7.2 Graphical Analysis from the identified patents (2760 patent applications):

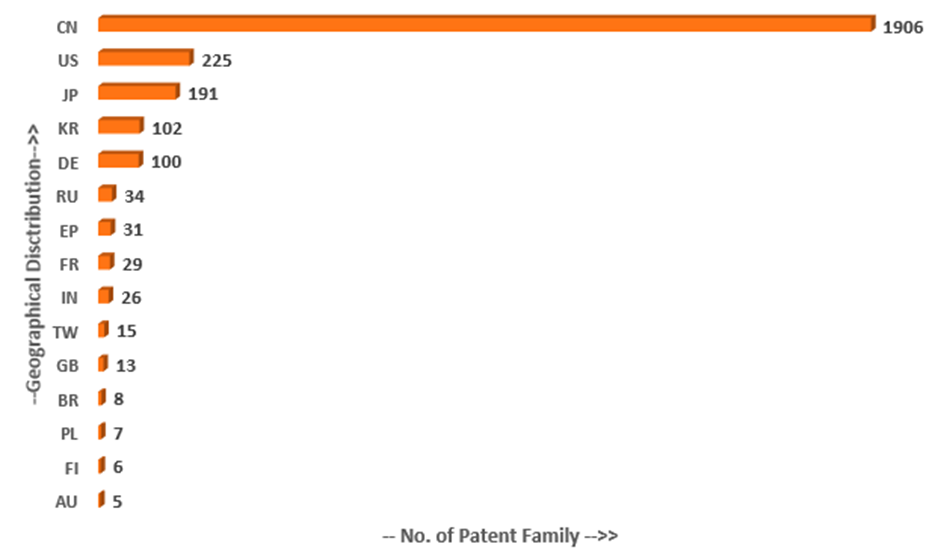

Figure 8 shows the distribution of patents across priority countries (top 15), providing insight into major R&D locations for nanocoating, China has most patents i.e., 1906, followed by US with 225 patents. India also holds 9th position.

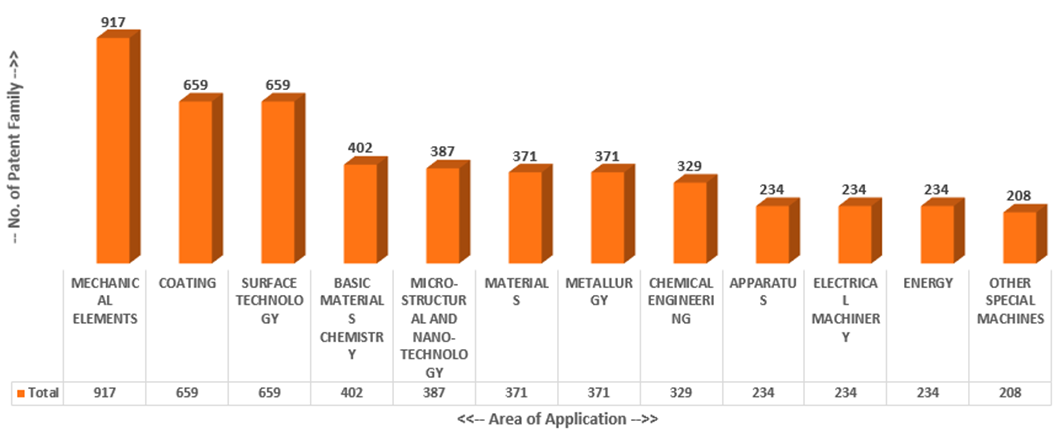

Figure 9 shows the application area of Nanocoating with a major focus on Mechanical Element, with 917 patents family in this domain. Surface Technology also hold at second place, with 659 patents family equal to Coating filed.

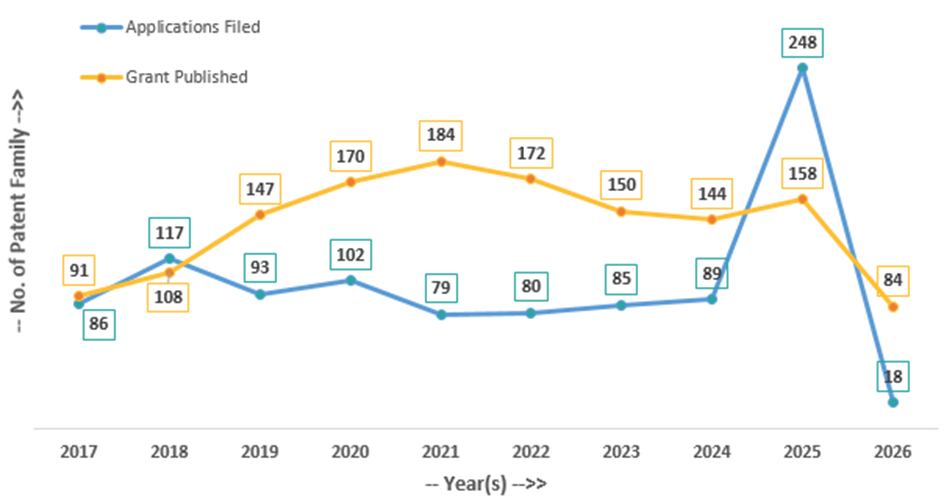

Figure 10 shows the patenting trend from last 10 year. Graph shows the highest peak at 2025 with 248 filled application in application area of nanocoating. Similarly, 2026 shows the hopeful growth (by data till April 2026) under the technology.

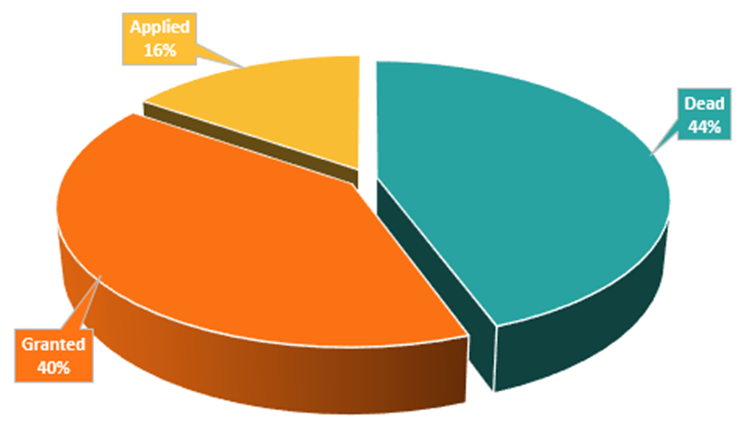

Figure 11 shows a pie chart demonstrating the total number of active (granted and applied) and inactive patents, with 56% patents categorized as “Active" and 44% as “Dead". Out of “Active” patent 40% are “Granted” and 16% are “Pending” application.

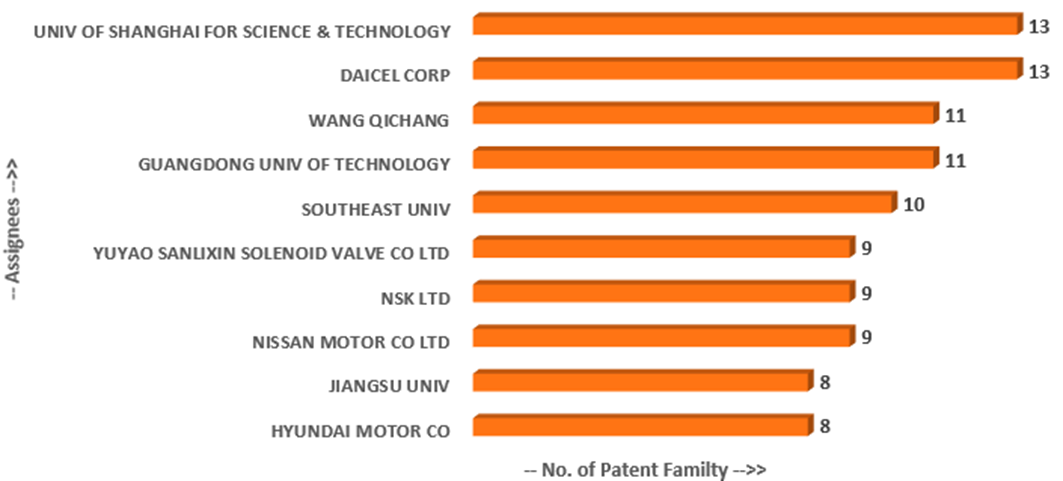

Figure 12 Shows top patent assignees, with the Daicel Corp & Univ. of shanghai for Science of Technology leading with 173 patents each, followed by the wang qichang & Guangdong univ. of technology.

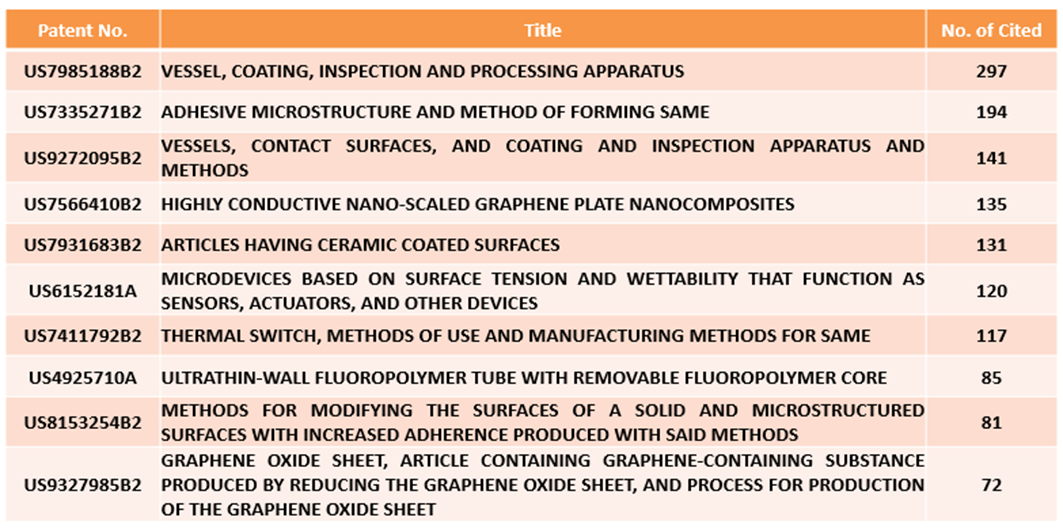

Table 1 Shows top cited references list, with US’188 holds 297 cited references.
8. Conclusion
Nanotechnology has revolutionized mechanical engineering by introducing materials and technologies that enhance strength, efficiency, and functionality. Advancements such as nano composites, nano-coatings, and nano-lubricants have transformed industries ranging from aerospace to environmental engineering. However, challenges such as manufacturing inconsistencies, health risks, and environmental impacts must be addressed through rigorous research, interdisciplinary collaboration, and ethical considerations.
Nano-coating are a major focus in advancement in surface engineering, providing unique solutions to improve wear resistance and lubrication in mechanical parts. Thus, it greatly helps in lower friction, extended the life of components or tools, save energy and boost it efficiency to provide positive outcome. As efforts continue to solve manufacturing issues, improve materials, and ensure safety, nano-coatings are set to become even more important in driving innovation across industries and creating stronger, more efficient, and sustainable mechanical systems.
