Executive Summary
Global efforts to mitigate climate change and reduce fossil fuel reliance have intensified interest in alternative transportation technologies. Solar-powered vehicles (SPVs) represent a key innovation in this space, combining photovoltaic energy harvesting with electric propulsion to deliver cleaner, more energy-efficient mobility. While still in developmental and early commercial stages, SPVs offer significant promise for reducing greenhouse gas emissions, lowering fuel costs, and enhancing energy autonomy for users.
Major automotive manufacturers, startups, and research institutions are actively advancing SPV designs, integrating lightweight materials, high-efficiency solar cells, and intelligent energy management systems. Market drivers include rising fuel prices, supportive government policies, and growing consumer demand for green technologies. However, challenges such as limited solar surface area, weather dependency, and infrastructure gaps hinder widespread adoption.
This whitepaper examines the current landscape of solar-powered vehicle technology, exploring technological advances, market trends, benefits, and barriers. It also highlights strategic pathways for accelerating commercialization and integrating SPVs into the future sustainable transport ecosystem.
1. Introduction

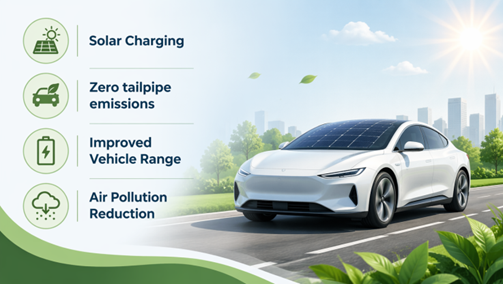

Figure 1. Advantages of PV panels on vehicles
The transportation sector is a major contributor to global carbon emissions, accounting for nearly 24% of direct CO₂ emissions from fuel combustion worldwide. As urbanization intensifies and vehicle ownership rises, there is increasing urgency to develop cleaner, more sustainable mobility solutions. Solar-powered vehicles (SPVs) have emerged as a promising technology, leveraging renewable solar energy to power transportation with minimal environmental impact.
Solar-powered vehicles (SPVs) integrate photovoltaic cells, typically on roofs or body panels, with electric drivetrains and battery storage to harness solar energy for propulsion. Unlike internal combustion vehicles, they produce zero tailpipe emissions, reducing air pollution and fossil fuel dependence. While fully solar-powered vehicles remain largely experimental, hybrid solar-electric models that use sunlight to supplement battery charging are increasingly viable. Ongoing advances in solar efficiency, lightweight materials, and energy management systems are improving range, performance, and cost-effectiveness. This paper reviews SPV technology, benefits, challenges, and future potential in the transition toward sustainable transportation.
2. Problem Statement
Figure 2. Key problems in solar powered vehicles.
Despite growing environmental concerns and advances in renewable energy, the transportation sector remains heavily reliant on fossil fuels, contributing significantly to greenhouse gas emissions and urban air pollution. Conventional vehicles powered by internal combustion engines are inefficient, costly to operate, and pose serious sustainability challenges.
Electric vehicles (EVs) have gained popularity as a cleaner alternative, but their dependence on grid electricity, often generated from non-renewable sources, limits their overall environmental benefits. Additionally, EV adoption faces hurdles such as limited driving range, long charging times, and insufficient charging infrastructure.
Solar-powered vehicles offer a clean mobility solution by using sunlight for partial energy generation, but several challenges limit widespread adoption. These include limited solar capture due to surface and efficiency constraints, high production costs from advanced materials and battery systems, and storage limitations that reduce reliability in low-sun or night conditions. Additional issues include performance trade-offs from added weight and complexity, along with weak infrastructure, limited standards, and low market readiness. Overcoming these barriers will require advances in solar efficiency, energy storage, vehicle design, and supportive policies to enable broader commercialization.
3. Technology Attributes
Solar-powered vehicles (SPVs) rely on several integrated technologies to efficiently capture, store, and convert solar energy into propulsion power. Photovoltaic (PV) cells, typically high-efficiency monocrystalline or multi-junction types, serve as the primary energy source, with efficiencies above 22-28% and growing use of flexible, lightweight designs for better vehicle integration. Energy is stored in lithium-ion battery systems (150-250 Wh/kg), supported by advanced battery management systems that optimize performance during low sunlight conditions. Power electronics, including MPPT-enabled inverters, maximize solar harvesting efficiency by up to 30%, while intelligent control systems manage energy flow between panels, batteries, and motors. Lightweight materials such as carbon fiber reduce vehicle weight by 20-40% and improve range by up to 25% through better aerodynamics. Electric drivetrains, operating at 85-95% efficiency, ensure clean and quiet propulsion. Finally, IoT and AI-based systems enhance overall performance by optimizing energy use, predicting maintenance, and adapting driving modes based on solar availability. Collectively, these technologies enable SPVs to move toward more efficient, low-emission, and partially energy-independent transportation.

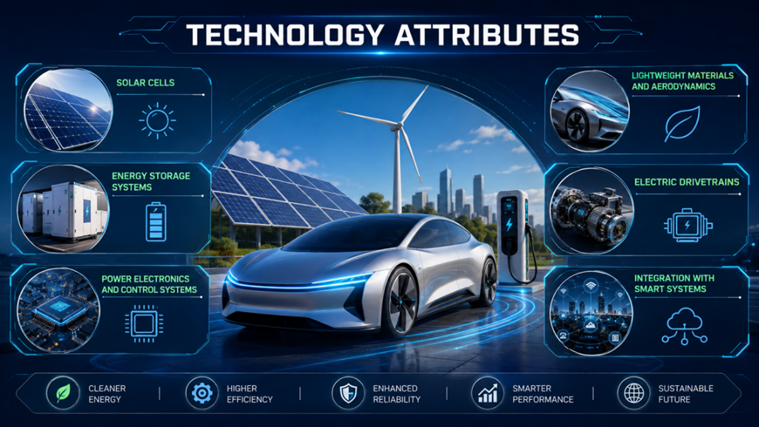

Figure 3. Technology Attributes
4. Stage of Development
Solar-powered vehicles (SPVs) are moving from experimental prototypes toward limited commercial viability, with growing momentum in hybrid solar-electric models that combine battery EV systems with integrated photovoltaic charging. Companies like Lightyear, Aptera Motors, and Sono Motors have demonstrated solar EV concepts offering partial daily driving ranges from sunlight, while research projects such as TU Eindhoven's Stella Vie and pilots like the solar-equipped Toyota Prius PHV highlight strong efficiency potential. Government bodies including the EU, U.S. Department of Energy, and Japan's NEDO are actively funding vehicle-integrated photovoltaics (VIPV), supporting a market projected to grow rapidly in the coming decade. However, challenges remain, including limited energy output (typically 20-40 km/day), high VIPV costs, and overall maturity levels that place most SPVs in mid-stage development rather than full commercialization.
5. IP Activity in Solar Powered Vehicles
As part of our analysis of patent activity in Solar powered Vehicles, an IP landscape study was conducted to identify patents related to the PV Solar cells, Mounting of Solar Cells, Energy storage system, Maximum Power Point Tracking, Electric Drivetrain, Zero Emissions, IoT & AI Software's. A total of 1,519 patent families were analyzed and 391 patent applications were selected for final analysis.
5.1 Relevant keywords, synonyms and classes used for search
- AI, Artificial Intelligence, Deep Learning, Neural Network, CNN, Machine Learning, ML, DL
- Solar Panel, PV Panels, Flexible PV Panel, Solar Cell, Solar absorbing sheet, photovoltaic cell, Monocrystalline Panel, Polycrystalline Panel, PV Cell
- Vehicle, Automobile, Automotive, Car, bus, Truck, Family Car, Semi-Truck, Motor Carriage
- Roof, Hood, Bonnet, Trunk lid, Boot, Car body, Car Frame, Vehicle Body, Vehicle Frame
- Relevant patent classification includes B60L8/00, H02J7/35, B60K16/00, H02S20/30, B60R16/033, B60L11/18, B60L53/51, H02S30/20, H02S10/40
5.2 Graphical Analysis from the identified patents (391 patent families)

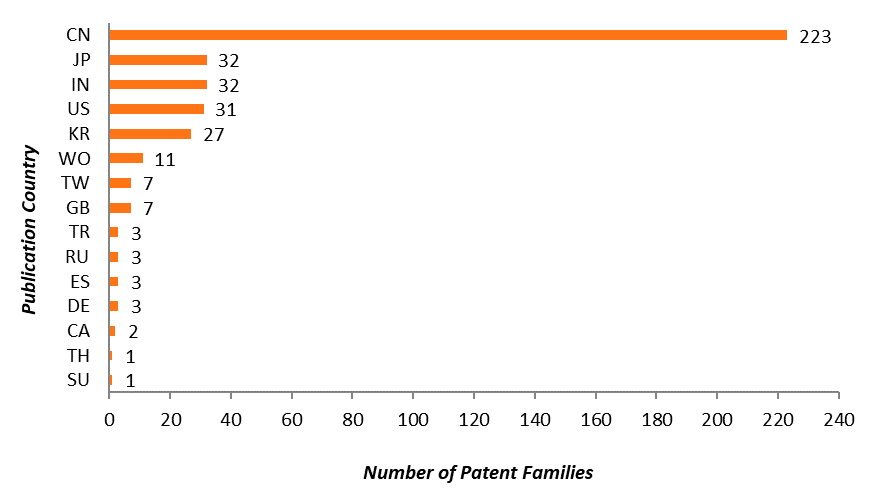

Figure 4 shows the distribution of patents across priority countries, providing insight into major R&D locations for Solar powered Vehicles. China has most patents i.e., 223, followed by JP with 32 patents.

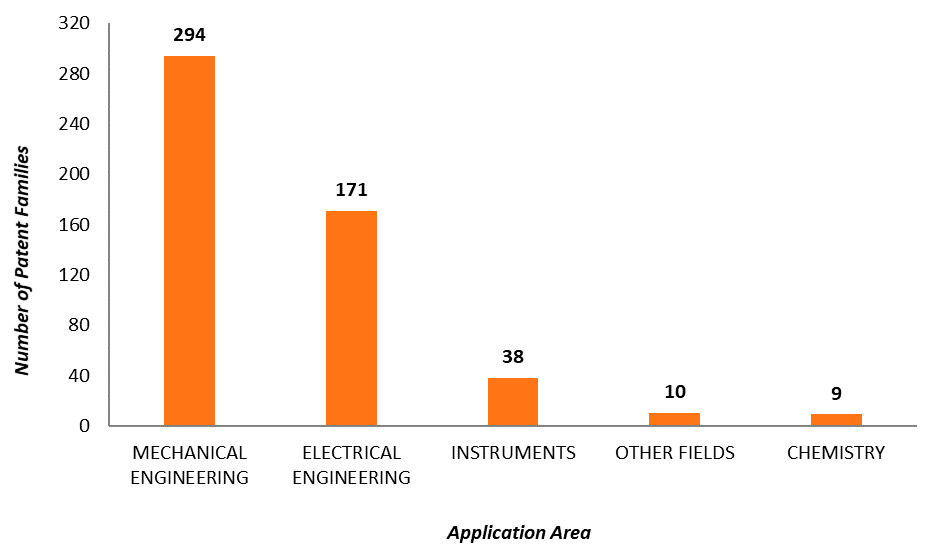

Figure 5 shows the application area of Solar powered Vehicles with a major focus on Mechanical Engineering, with 294 patents in this domain. Electrical Setup, being the most crucial part, also receives considerable attention, with 171 patents.

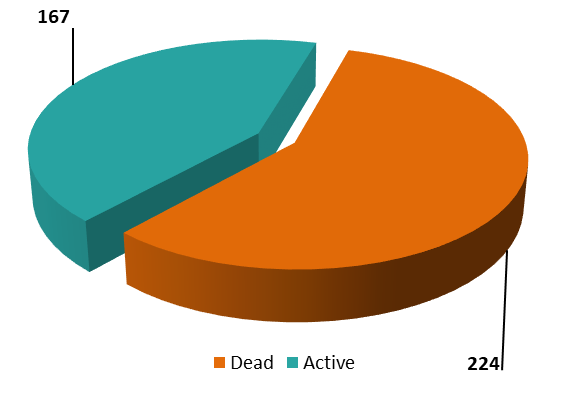

Figure 6 shows a pie chart demonstrating the total number of active and inactive patents, with 167 patents categorized as "Active" and 224 as "Inactive."

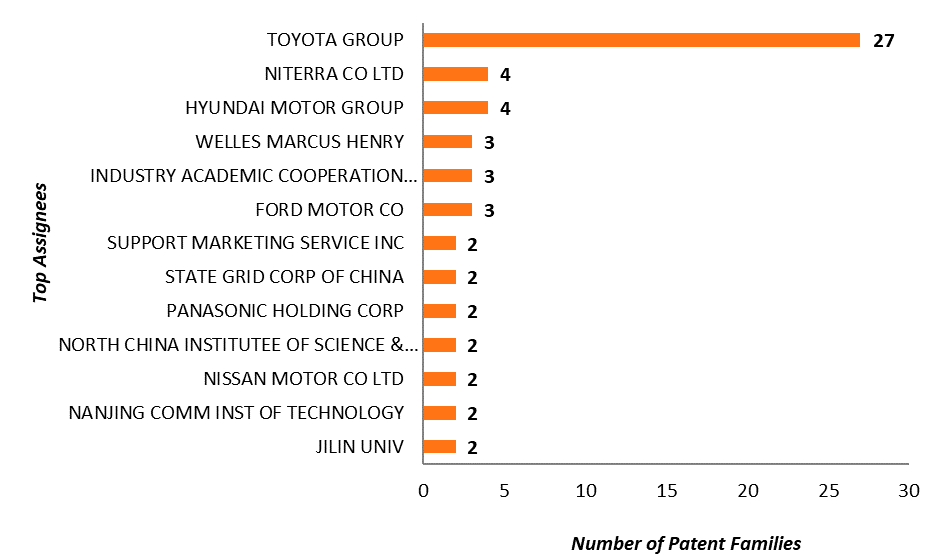

Figure 7 shows top patent assignees, with the Toyota Group leading with 27 patents, followed by Niterra Co Ltd with 4 patents.
6. Market and Commercial Outlook

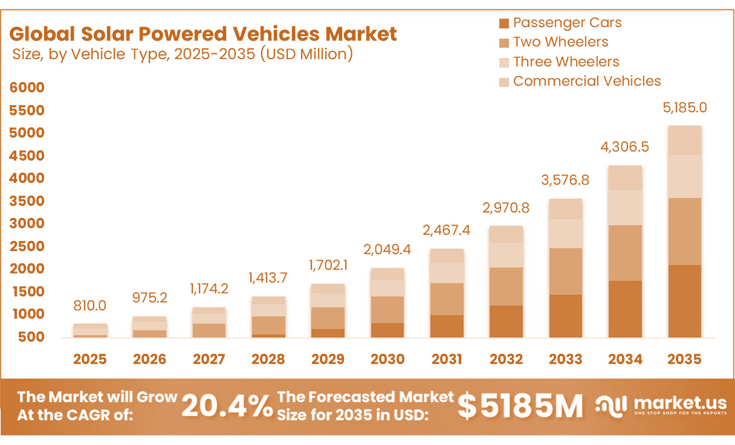

Vehicles having Solar Charging: The Global Solar Powered Vehicles Market size is expected to be worth around USD 5,185.0 Million by 2035, from USD 810.0 Million in 2025, at a CAGR of 20.4%.
Figure 8. Solar Powered Vehicles
Source: https://market.us/report/solar-powered-vehicles-market/
6.1 Toyota Motors
Toyota is a leading player in vehicle-integrated photovoltaics (VIPV), holding over 200 patents in the field and experimenting with solar applications on models such as the Prius and bZ4X, with solar systems capable of adding up to about 6 km of driving range per day. The company has collaborated with organizations like Sharp Corporation and NEDO to develop and test solar-integrated prototypes, including Prius-based systems. It has also explored high-efficiency solutions using crystalline silicon solar cells from Kaneka Corporation, reportedly reaching efficiencies around 26.63% for integration into vehicle roof glass, aiming to improve solar performance without compromising vehicle design or usability.
6.2 Aptera Motors
Aptera's Launch Edition solar EV has sold out its first 2,000 production slots, raising over US$33 million through its Accelerator Program and more than US$100 million from 17,000+ investors. The company has built a broad ecosystem of partners, including LG Energy Solution (supplying 4.4 GWh of 2170 battery cells from 2025-2031) and CTNS (battery module/pack production), alongside Inmotive's Ingear™ two-speed transmission to improve efficiency. It has also expanded solar integration through collaborations with TELO Trucks, Averest, and Polydrops, while working with Pininfarina on aerodynamic design and RedViking on automated manufacturing systems. Aptera aims for low-volume production in 2025-2026 but still requires about US$60 million in additional funding, and is also pursuing global expansion, including a UAE 'Union Edition' model planned for 2026.
6.3 Lightyear
Lightyear is a solar-electric car startup whose Lightyear One/Lightyear 0 can deliver around 70 km (43 miles) of daily driving range from integrated solar panels, potentially reaching up to 11,000 km per year in ideal conditions, with strong real-world performance reported in sunny climates. The company partnered with Valmet Automotive in 2021 to manufacture its initial limited series, and later secured major fleet interest when Arval (BNP Paribas Group) pre-ordered 10,000 units of the Lightyear 2, taking B2B pre-orders beyond 21,000 units (about €840 million potential value). Its technology foundation includes support from NXP Semiconductors via Solar Team Eindhoven's R&D roots, while Sibros enabled connected vehicle features such as OTA updates for the Lightyear One.
7. Conclusion
Solar-powered vehicles (SPVs) integrate photovoltaic systems to enable partial self-charging, reducing reliance on external charging and lowering emissions. Companies like Aptera, Lightyear, Sono Motors, and Squad Mobility are leading development, while major industry collaborations (e.g., Hanergy and Hyundai) show growing mainstream interest. Despite progress, SPVs still face challenges such as limited solar surface area, weather dependence, cost, and infrastructure gaps. Advances in VIPV, lightweight materials, batteries, and AI energy management are improving feasibility, making SPVs increasingly suitable for niche uses like urban and low-mileage travel, with long-term potential to complement electric mobility.
